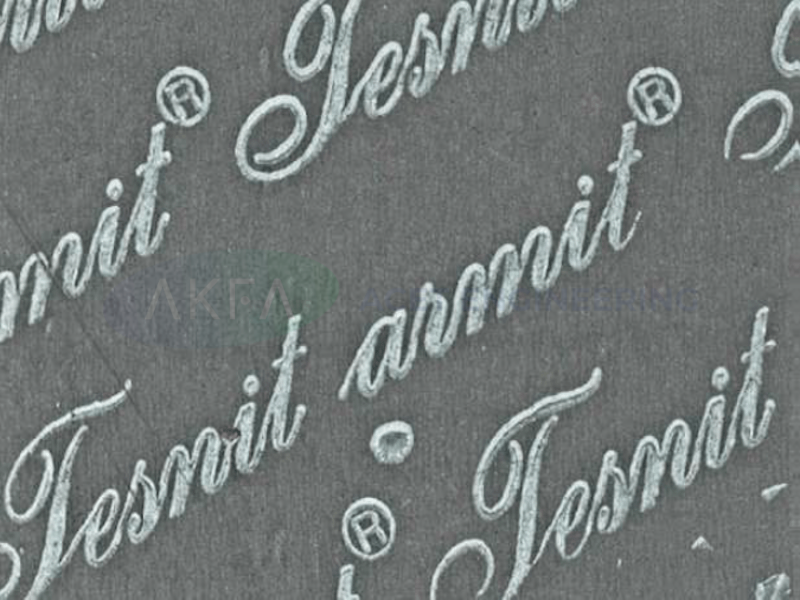

"Tesnit Armit " Wire Reinforced Gasket Jointing Sheets
Please enter valid quantity.
Product Description
 |
General Application Guide :
|
| Steel wire-reinforced for highest fluctuating pressure and temperature and extreme service, for oils, fuels, lubricants, solvents, steam, water, are and gases. |
|
| SIZE |
Weight |
| 1/8" (3mm) 1500mm X 2000mm (60"x 80") |
18.9KG / SHEET |
| 1/16" (1.5mm) 1500mm X 2000mm (60"x 80") |
9.45KG / SHEET |
|
|
|
|
| Colour Identification |
Graphite |
| Binder |
NBR / SBR |
| Pressure |
200 Bar |
| Temperature |
550°c |
| Permissible surface stress |
150 |
| Compressibility |
7 |
| Recovery |
50 |
| Stress Relaxation |
40 |
| Tensile, Across |
25 |
| ASTM Oil No 3 |
15 |
| ASTM Fuel B |
15 |
| H2SO4-96% |
- |
| HNo3-40% |
- |
| Ignition Loss |
17 |
| Density |
2.2 |
| British (BS) |
2815A Reinforced |
| French (M2T) |
- |
| German (DIN) |
3754 Reinforced |
| Japanese (JIS) (JIP) |
Reinforced |
|
|
|
|
|
General Application Guide :
|
| Steel wire-reinforced for highest fluctuating pressure and temperature and extreme service, for oils, fuels, lubricants, solvents, steam, water, are and gases. |
|
| SIZE |
Weight |
| 1/8" (3mm) 1500mm X 2000mm (60"x 80") |
18.9KG / SHEET |
| 1/16" (1.5mm) 1500mm X 2000mm (60"x 80") |
9.45KG / SHEET |
|
|
|
|
| Colour Identification |
Graphite |
| Binder |
NBR / SBR |
| Pressure |
200 Bar |
| Temperature |
550°c |
| Permissible surface stress |
150 |
| Compressibility |
7 |
| Recovery |
50 |
| Stress Relaxation |
40 |
| Tensile, Across |
25 |
| ASTM Oil No 3 |
15 |
| ASTM Fuel B |
15 |
| H2SO4-96% |
- |
| HNo3-40% |
- |
| Ignition Loss |
17 |
| Density |
2.2 |
| British (BS) |
2815A Reinforced |
| French (M2T) |
- |
| German (DIN) |
3754 Reinforced |
| Japanese (JIS) (JIP) |
Reinforced |
|
|
|
|
|
